Demonstrating the World’s Fastest Spintronics p-bit.

03/19/2021

Tohoku University researchers have, for the first time, developed the technology for the nanosecond operation of the spintronics-based probabilistic bit (p-bit)—dubbed the poor man’s quantum bit (q-bit).

The late physicist R.P. Feynman envisioned a probabilistic computer: a computer that is capable of dealing with probabilities at scale to enable efficient computing.

“Our latest technology made the first step to realize Feynman’s vision with spintronics”, said Shun Kanai, professor at the Research Institute of Electrical Communication at Tohoku University and lead author of the study.

Magnetic tunnel junctions (MTJs) are the key component of non-volatile memory or MRAM, a mass produced memory technology that uses magnetization to store information. There, thermal fluctuation typically poses a threat to the stable storage of information.

P-bits, on the other hand, function with these thermal fluctuations in thermally unstable (stochastic) MTJs. Prior collaborative research between Tohoku University and Purdue University demonstrated a spintronics-based probabilistic computer at room temperature consisting of stochastic MTJs with millisecond-long relaxation times.

In order to make the probabilistic computers a viable technology, it is necessary to develop stochastic MTJs with much shorter relaxation times which reduces the fluctuation timescale of the p-bit. Doing so would effectively increase the computation speed/accuracy.

The Tohoku University research group, comprising Kanai, Professor Hideo Ohno (the current Tohoku University president), and Professor Shunsuke Fukami, produced a nanoscale MTJ device with an in-plane magnetic easy axis [Fig. 1(a)]. The magnetization direction updates every 8 nanoseconds on average—100 times faster than the previous world record [Fig. 1(b)].

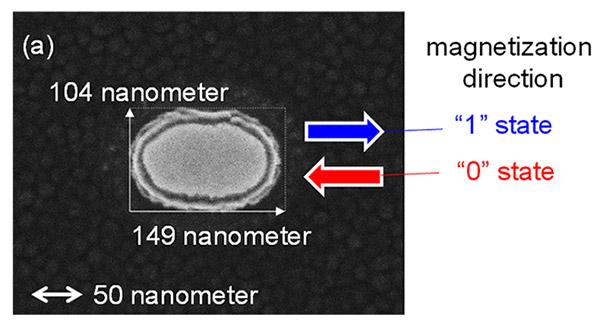

Fig. 1: (a) Top-view of scanning electron microscopy image of magnetic tunnel junction device. © K. Hayakawa, S. Kanai, T. Funatsu, J. Igarashi, B. Jinnai, W.A. Borders, H. Ohno, and S. Fukami

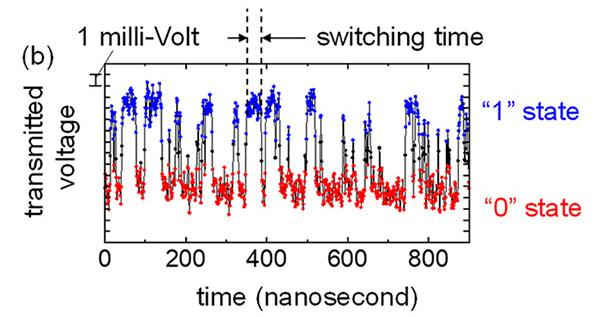

Fig. 1: (b) Realtime measured transmitted voltage signal which reflects the magnetization state as well as bit state. Relaxation time defined as an averaged switching time over 100 million time a second is observed. © K. Hayakawa, S. Kanai, T. Funatsu, J. Igarashi, B. Jinnai, W.A. Borders, H. Ohno, and S. Fukami

The group explained the mechanism of this extremely short relaxation time by utilizing entropy – a physical quantity used to represent the stochasticity of systems that had previously not been considered for magnetization dynamics. Deriving a universal equation governing the entropy in magnetization dynamics, they discovered that the entropy rapidly increases in MTJs with in-plane easy axis with larger magnitudes of perpendicular magnetic anisotropy. The group intentionally employed an in-plane magnetic easy axis for achieving shorter relaxation times.

“The developed MTJ is compatible with current semiconductor back-end-of-line processes and shows substantial promise for the future realization of high-performance probabilistic computers”, added Kanai. “Our theoretical framework of magnetization dynamics including entropy also has broad scientific implication, ultimately showing the potential of spintronics to contribute to debatable issues in statistical physics”.

Publication Details

Title: Nanosecond Random Telegraph Noise in In-Plane Magnetic Tunnel Junctions
Authors: K. Hayakawa, S. Kanai, T. Funatsu, J. Igarashi, B. Jinnai, W.A. Borders, H. Ohno, and S. Fukami
Journal: Physical Review Letters
DOI: 10.1103/PhysRevLett.126.117202(will open in a new tab)

Title: Theory of relaxation time of stochastic nanomagnets
Authors: S. Kanai, K. Hayakawa, H. Ohno, and S. Fukami
Journal: Physical Review B
DOI: 10.1103/PhysRevB.103.094423(will open in a new tab)
